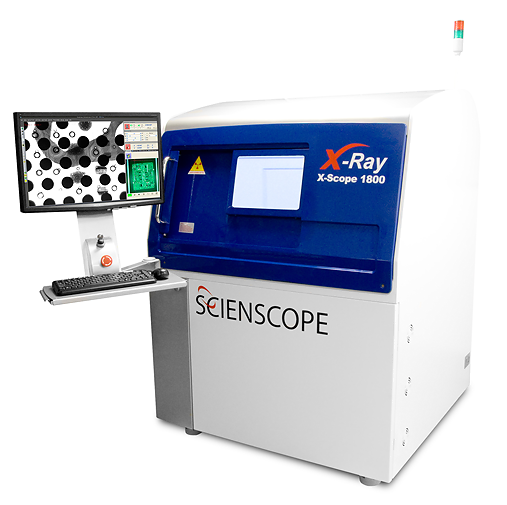

X-SCOPE 1800 Cabinet X-Ray Inspection System



Standard features of the X-Scope 1800 X-Ray Inspection System
  • 4" x 3" digital flat panel detector
  • 90 kV- 5 micron x ray tube
  • Z axis movement of the x-ray tube
  • Computer controlled kV and mA settings
  • Computer controlled variable speed X-Y stage
  • Full featured Image processing CPU with 23" LCD flat panel monitor
  • 16" x 18" stage and 70 degree oblique angle viewing
  • Programmable computer controlled - variable speed X-Y stage with a 70 degree sample tilt fixture
  • Simple point and click inspection routines
  • Mega pixel mapping camera with zoom window - easy location and identification of faults


Applications
  • BGA Inspection
  • Inspection of over molded electrical connectors
  • Encapsulated components
  • Aluminum die castings
  • Molded plastic components
  • Ceramics
  • Aerospace components
  • Electrical / mechanical components
  • Electronic components
  • Pharmaceuticals
  • Automotive assemblies
  • Agriculture
  • Counterfeit inspection
  • Cell phone battery inspection
CNC Programmability Automated Inspection Routines
  • Simple point and click creation of inspection routines
  • Stage locations- X, Y, Z , X-Ray Tube and X-Ray Detector
  • kV and mA settings
  • Video settings- brightness, contrast, camera gain and exposure
  • User adjustable dwell time between stage and system control changes
  • Anti collision system to maximize magnification during oblique angle viewing
  • Automatically Analyzes BGA diameters, Void Percentages, Area and Roundness.
X-SCOPE User Interface


X-SCOPE 1800 Specifications
X-Ray Tube
Tube Style Closed Type
Tube Voltage 90kV or 80kV
Tube Current 0.256mA / 0.18mA
Focal Spot Size 5 Micron / 10 Micron
Tube Cooling Forced Air
Geometric Magnification 50X
System Magnification 500X
Digital Flat Panel X-Ray Detector
Grayscale 14-bit (16,384 shades of grayscale)
Speed 30 FPS
Resolution 99 m (1.2MP) - high quality / 135 m (1 MP) - standard
X-Ray Cabinet
Dimension 1100mm (L) x 1100mm (W) x 1400mm (H)
Sample Table Size 400mm x 500mm
Sample Table Movement X Axis 460mm, Y Axis 310mm Z Axis 240mm
Sample Table Tilt + 50 degree
Weight 800 kg Steel - Lead - Steel welded construction
Power
Automatic switching power supply AC 110 - 230 VAC 50/60 Hz
Computer
Operating System Microsoft Windows 7 PRO (32-bit)
Warranty
One year, parts and labor

  • Model: X-SCOPE 1800
