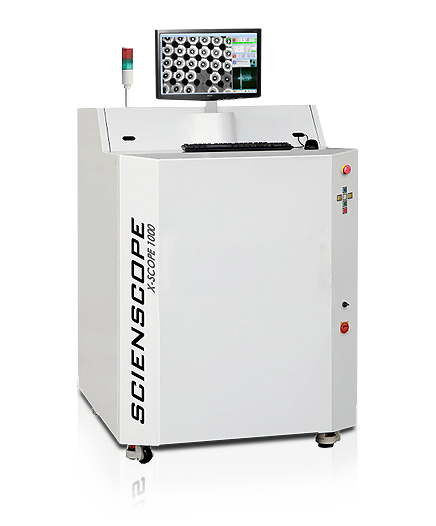

X-SCOPE 1000 Mini Cabinet X-Ray Inspection System



About X-SCOPE 1000

The X-Scope 1000 is a smaller, less costly high resolution x-ray inspection system designed for batch inspection.

Standard features of the X-Scope 1000 X-Ray Inspection System
  • A 2”x2” digital flat panel x-ray detector
  • 90 kV- 7 micron x ray tube
  • Z axis movement of the x-ray tube and sample stage
  • Computer controlled kV and mA settings
  • Computer controlled variable speed X-Y stage
  • Full featured Image processing CPU with 17 inch LCD flat panel monitor
  • Optional 360 degree sample stage rotation available
Key features of the X-Scope 1000
Feature Benefit
2” X 2” Flat Panel X-Ray Detector
  • High Spatial Contrast
  • 4096 Shades of Grayscale
  • Detect Subtle Density / Grayscale Differences
  • Ideal For Inspecting Low Density Samples
  • 360 Degree Sample Rotation (optional)
  • Easily Find Hidden Defects
  • Small Foot Print
  • Saves Valuable Shop / Lab Floor Space
  • Can Be Moved From The Lab To The Shop Floor In Minutes


  • Applications
    • Inspection of over molded electrical connectors
    • Encapsulated components
    • Aluminum die castings
    • Molded plastic components
    • Ceramics
    • Aerospace components
    • Electrical / mechanical components
    • Electronic components
    • SMT assemblies
    • Pharmaceuticals
    • Automotive assemblies
    • Agriculture
    • Counterfeit inspection
    • Cell phone battery inspection

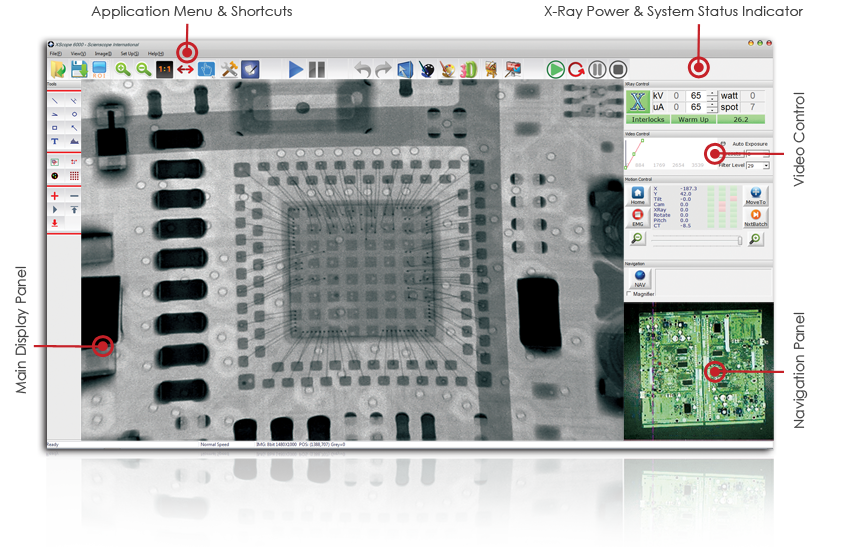

    X-SCOPE User Interface


    X-SCOPE 1000 Specifications
    X-Ray Tube
    Tube Style Closed Type
    Tube Voltage 80kV
    Tube Current 0.12mA
    Focal Spot Size 8 Micron
    Tube Cooling Forced Air
    Geometric Magnification 15X
    System Magnification 125X
    Digital Flat Panel X-Ray Detector
    50mm x 50mm 12-bit 4096 shades of grayscale
    Speed 4 FPS
    Resolution 1024 x 1024
    X-Ray Cabinet
    Dimension 1100mm (L) x 750mm (W) x 1400mm (H)
    Sample Table Size 320mm x 250mm
    Sample Table Movement X Axis 200mm, Y Axis 200mm Z Axis 200mm
    Weight 450 kg Steel - Lead - Steel welded construction
    Power
    Automatic switching power supply 110 - 230 VAC 50/60 Hz
    Computer
    Operating System Microsoft Windows XP
    Warranty
    One year, parts and labor


    Live Online Demo of your application
    Scienscope can do sample demos over the internet; you can see the sample being x-rayed real-time while we explain what you are seeing in the images and the technique factors (kV-mA-magnification) that are being used. We can also demonstrate all of the X-Scope 1000 physical and software features. During the online demo we can turn the control of the system to you; you can control all of the functions of the X-Scope 1000 from your desktop. This works well for companies that have decision makers in numerous locations because there is no limit to the amount of people that can log on to the online meeting.

    Installation
    Scienscope will provide installation and calibration service at the customers location Installation includes assistance in registering your new x-ray system with local and state agencies where applicable. One (1) on-site radiation survey at the time of installation with supporting documents.

    Training
    One day (6 hours maximum) of training will be provided by Scienscope, training will include:
    • Basic Radiation Safety.
    • X-Ray system control functions.
    • X-Ray image processing software training.
    • Basic X-ray signature analysis training.
    • Hands-on sample analysis using your typical samples.
    • Training certificates for all attendees.

    • Model: XR-CA-1000
