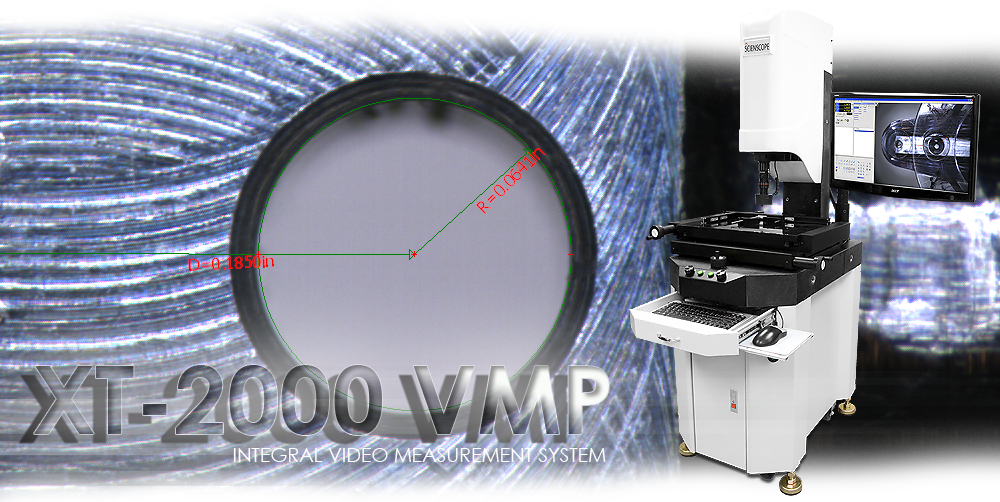

XT-2000 VMP Integral

Scienscope video measurement systems are specifically designed for non-contact measurement and inspection of small, delicate, or complex components.

They are the next generation of traditional measuring measuring microscopes and optical comparators.

All Scienscope measurement systems are ready to go out the box for easy setup and use. We have a variety of models to best fit your needs.


Product features
  • Compact and ergonomic
  • Efficient
  • Self-contained
  • Precision granite base and column.
  • 1/2" color 1.3 mega pixel USB digital camera.
  • High resolution image.
  • 23" Widescreen LCD monitor with large live image.
  • Zoom lens with detents.
  • Quick release steel stage.
  • LED top and bottom lighting.
  • 1 year warranty.
  • Download Product PDF

    Intuitive On-screen Measurement Software on Live Image



    The OVM PRO is easy to use full feature geometric measurement software with advanced edge detection tools. Advanced tools permit instant click and drag multiple feature measurement. OVM PRO is programmable with sequence and direction prompts that trigger auto edge detection thus eliminating time consuming fine adjustment. As well, the system features multiple datums, image capture, and CAD overlay.

    Get the Flash Player to see this player.

    Specifications
    Model NO. XT-VME 6108D XYZ or XT-VME 8128D XYZ
    Measuring Range (X/Y/Z) 6" x 10" x 8" or 8" x 12" x 8"
    Measurement Software Options OVM Lite, OVM Pro, or Geometric
    Size (include base) 48"L x 29"D x 66"H
    Stage Load Capacity 66 Lbs.
    Standard Magnification 25x to 158x / Capable of up to 316x
    Illumination LED Top and Collimated Botton
    Power supply 110V-220V : 5% 50/60HZ
    System Resolution 1m
    Accuracy (X/Y) at 20C (3+L/200) m
    Repeatability 1m
    Camera 1/2" color 1.3 mega pixel USB digital camera
    Warranty 1 Year
    Measurement Software Options

    OVM provides many powerful vision measuring tools such as intelligent edge detection, box area measuring, elimination of abnormal data and quick edge-finding. Other useful functions include depth measuring with focusing indicator, measurements program, crosshair measuring, DXF-import, and size marking.

    OVM Lite

    The OVM Lite is easy to use geometric measurement software with single point edge detection. Measure circle, arc, angle, ellipse, B-spline curve, center point, distance, etc. As well, the system features multiple datums and image capture.

  • Single point edge detection
  • Multiple datums & image capture
  • Cross hair indicates edge transition
  • Import and export data
  • Large live image screen
  • Quick and easy measurement
  • Measures circle, arc, angle, ellipse, B-splinescurv, center point, distance, and more
  • Auto-point-detecting measurement
    The points on the edge can be automatically detected while just clicking the edge areas. Many geometric measurements, for example point, line, circle, arc, angle and complicated graphics etc., can be obtained by this function.
  • Elimination of abnormal data
    The function eliminates any point data that is not consistent with the majority of measured data, and is especially suitable for blind-hole, chamfer and work pieces with burrs, nicks and other flaws.
  • CAD import
    This function allows CAD files such as DXF format to be imported into system, thereby ensuring the dramatic time reduction in part programming and stage navigation. The XY table can be quickly moved to a desired position via the drawing on the graphic window. And tolerance judgment is immediately obtained by comparison with CAD data.
  • Size marking
    The size of measured features can be marked in the image screen directly, thereby avoiding the size marking in CAD data by file export. Thus, the reporting efficiency greatly improves.
  • OVM PRO

    The OVM PRO is easy to use full feature geometric measurement software with advanced edge detection tools. Advanced tools permit instant click and drag multiple feature measurement. OVM PRO is programmable with sequence and direction prompts that trigger auto edge detection thus eliminating time consuming fine adjustment. As well, the system features multiple datums, image capture, and CAD overlay.


  • Program inspection sequence
  • Focus tool
  • Multi point edge detection
  • Multiple datums & image capture
  • Cross hair indicates edge transition
  • Import and export data
  • Large live image screen
  • Quick and easy measurement
  • Measures circle, arc, angle, ellipse, B-splinescurv, center point, distance, and more
  • Auto-point-detecting measurement
    The points on the edge can be automatically detected while just clicking the edge areas. Many geometric measurements, for example point, line, circle, arc, angle and complicated graphics etc., can be obtained by this function.
  • Box area measurement
    All the measurements of a hole pattern can be accomplished by click and drag box framing. Thus, it can greatly improve the efficiency of multi-data measurement.
  • Elimination of abnormal data
    The function eliminates any point data that is not consistent with the majority of measured data, and is especially suitable for blind-hole, chamfer and work pieces with burrs, nicks and other flaws.
  • Auto- line-detecting
    With a single mouse click while measuring, the software can detect features automatically.
  • Statistical Process Control ( SPC)
    Statistical Process Control is about identifying process changes quickly, but not overreacting to normal part Variation.
  • Depth measurement
    Manual Machine version: a powerful focusing indicator can be used to measure depth.
  • Programmable function
    OVM software makes part programming easy. All the measuring steps, location, measuring tools and settings are listed and remembered by the system. Then the measuring steps can be saved and recalled for like part measurements as required.
  • CAD import
    This function allows CAD files such as DXF format to be imported into system, thereby ensuring the dramatic time reduction in part programming and stage navigation. The XY table can be quickly moved to a desired position via the drawing on the graphic window. And tolerance judgment is immediately obtained by comparison with CAD data.
  • Size marking
    The size of measured features can be marked in the image screen directly, thereby avoiding the size marking in CAD data by file export. Thus, the reporting efficiency greatly improves.

    • Model: XT-VMP
