SSZ-II Stereo Zoom Binocular Microscope System Packages


With long term reliability and customer satisfaction in mind we have redesigned the SSZ series Stereo Zoom Microscopes. We have retained the core quality and technology while improving the ergonomics, optics, and performance. We are confident that you will experience the same long term dependability and enjoy the new features and benefits.

The Scienscope SSZ-II Stereo Zoom Binocular Microscope is our most popular binocular microscope with high performance and durability that has been proven and time tested. It is made with the most advanced body construction and technology with a single spindle zoom, modularized gears, and fixed prisms. It also uses an isolated nylon-on-nylon gear system which increases the smoothness of the zoom, reduces martial fatigue, and protects the gears from other moving parts.

SSZ-II Microscope Body Features
Built to last

Precision CNC machined parts assembled to leading industry standards. Extends the life of the microscope and lowers service costs.

User-friendly & Ergonomic

High point, lockable eyepieces and ergonomically located zoom control.

Excellent for documentation

Third view port allows video output; makes training and documenting your work a snap.

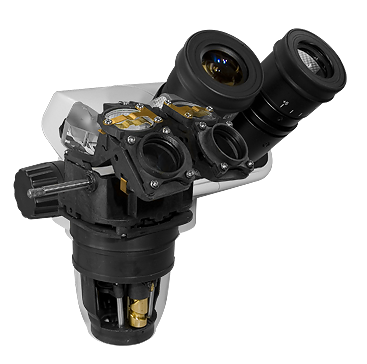

Proven Body Design

Scienscope prisms are housed with the body of the microscope, and do not move with eyepieces. This design protects the prisms and eliminates the chance of misalignment caused by the prisms.

Scienscope microscopes use an external nylon-on-nylon gear system. This increase the smoothness of the zoom and protects the gears from other moving parts. This system is less likely to deteriorate over time due to the compatibility of the materials. Notice how the gears are housed away from all other internal mechanisms.

Scienscope microscope use advanced technology, Single Spindle Zoom design, which allows for a smooth zoom and control that is superior to many of our competitors. This revolutionary design has two huge advantages. First, the objective cannot move independently of each other; therefore, it is less likely to cause a misaligned or double image. Secondly, the zoom knob is extremely smooth, allowing the user to maintain the vision trough eyepieces while zooming.

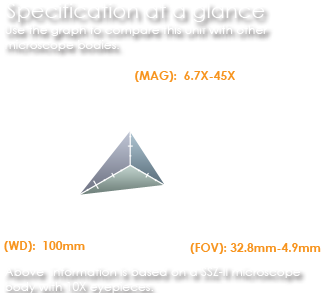

SSZ-II Data Sheet
Microscope Body Specifications
Microscope Body Zoom Range 0.67X to 4.5X
Zoom Ratio 6.7:1
Magnification w/ 10X eyepieces 6.7X to 45X
Field of View 32.8mm - 4.9mm
Working Distance 100mm
Eyepieces Inclination 45
Dioptric Adjustment 5 Dual Independent
Interpupillary Adjustment 50mm - 76mm
Microscope Ring Mount Diameter 76mm
Available Eyepieces 10X and 20X
Available Objective Lens 0.3X, 0.4X, 0.5X, 0.7X, 1.5X, and 2X

A full range of eyepieces and objective lenses are also available, please refer to the specification below for more additional option.

SSZ-II Optical Specifications
Objective Lens Working Distance (mm) Eyepieces
10X 20X
Mag. FOV (mm) Mag. FOV (mm)
0.3X 287mm 2X - 13.5X 109.5 - 16.3 4X - 27X 59.7 - 8.9
0.4X 217mm 2.7X - 18X 82.1 - 12.2 5.4X - 36X 44.8 - 6.7
0.5X 177mm 3.4X - 22.5X 65.7 - 9.8 6.7X - 45X 35.8 - 5.3
0.75X 117mm 5X - 33.8X 43.8 - 6.5 10.1X - 67.5X 23.9 - 3.6
Default (1X) 100mm 6.7X - 45X 32.8 - 4.9 13.4X - 90X 17.9 - 2.7
1.5X 47mm 10.1X - 67.5X 21.9 - 3.3 20.1X - 135X 11.9 - 1.8
2X 26mm 13.4X - 90X 16.4 - 2.4 26.8X - 180X 9 - 1.3
Packaged Specifications: Below SCIENSCOPE Packages comes with the highlighted specifications. Mag. = Magnification, FOV = Field of View, WD = Working Distance

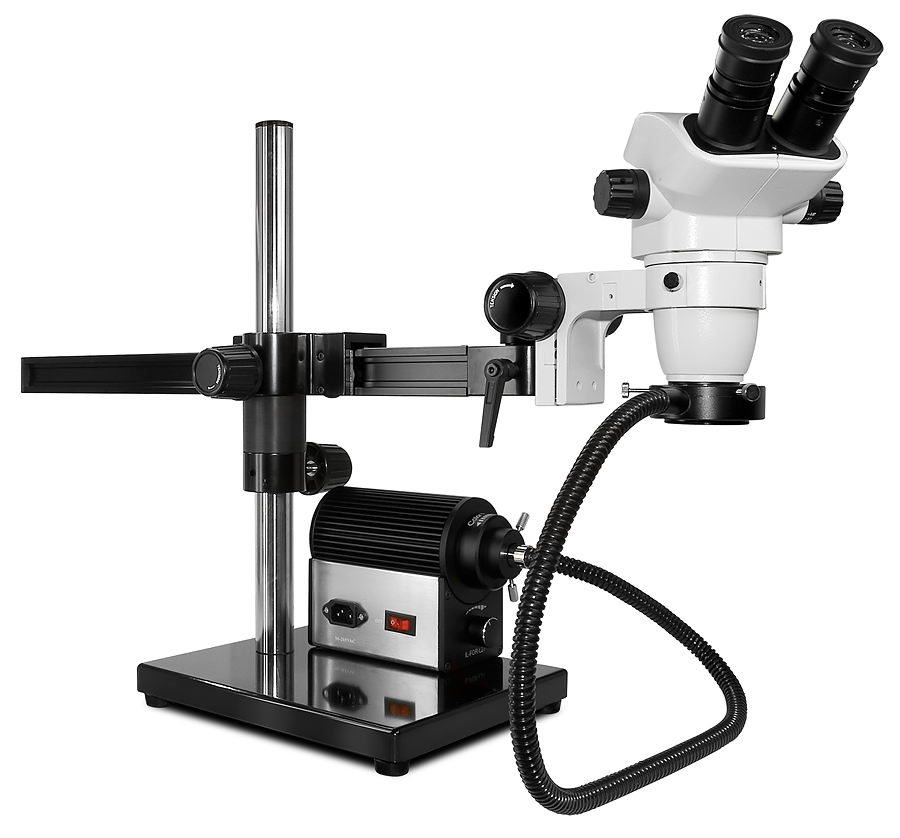

SSZ-II PK5 Series Boom Stand Systems

This package is designed to support large research grade microscopes, has a smooth gliding motion, and offered resistance to tip-over and vibration.

SSZ-II PK5 Systems Include:


Select your system choice of lighting:
SSZ-II PK3 Series CF Arm Systems

This package is an ideal solution for an overcrowded workbench. The articulating arm clamps onto most surfaces, therefore freeing up valuable space.

SSZ-II PK3 Systems Include:


Select your system choice of lighting:
SSZ-II PK2 Series Track Stand Systems

This stable and compact package is ideal for smaller applications like medical device application or crowded working environments. The track stand provides a continuous smooth vertical travel of 4" with 76mm microscope holder.

SSZ-II PK2 Systems Include:


Select your system choice of lighting:
SSZ-II PK1 Series Post Stand Systems

This stable and compack package is also ideal for smaller applications like medical device application or crowded working environments. With 12" vertical post allows the rack and pinion to travel at a great working distance.

SSZ-II PK1 Systems Include:


Select your system choice of lighting:
