E-Series Parallel Zoom Stereo Binocular Microscope Packages



The first ever parallel stereo zoom microscope system from Scienscope. This microscope is comparable to leading brand manufacturers, see it for yourself. Years of development and design have yielded the first affordable high performance system of its kind.

There are two types of optical heads available: Tilting or Fixed. The new Tilting/Ergo Head truly resolves the headaches associated with using a stereo microscope continuously. The Ergo head allows up to 45 degrees of tilt/positioning capability and 180 degrees of rotating capability to accommodate operators of any height or bench position of the stereo microscope. The Fixed head provides a 20 degree inclination with extended eye tubes for fatigue reduced viewing.

All E series microscopes are easily upgradeable to a Trinocular (Video Camera) port for on-screen viewing and image capture at mega pixel resolution. Compare the quality and price of the E series to other name brand systems of the parallel category and we are confident that you will be pleasantly surprised.
20 fixed head
Eyepiece inclination of 20 allow you to observe without having the lean forward which reduces fatigue during long hours of operation.
Ergonomic tilting and rotating head
Eyepieces tilt and rotate to adjust for operator height. Eyepieces rotate 180Eyepeices tilt with 3" travel. Inclination is adjustable from 0 to 45 for optimum user comfort.
Stackable Accessories

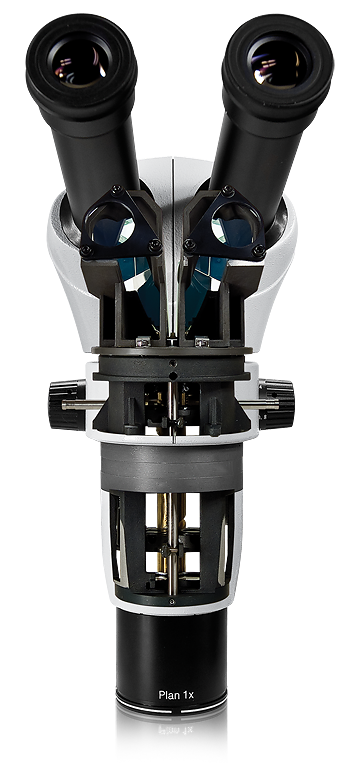

A parallel infinity corrected optical system that allows for ergonomic customization and stacking of several components without distorting the image.



E-Series Data Sheet
Microscope Body Specifications
Avalible Zoom Bodies Range: 0.8X - 5X, 0.8X - 6.4X, 0.8X - 8X
Zoom Ratio: 1:6, 1:8, 1:10 (respectively0
Magnification w/ 10X eyepieces 8X - 50X, 8X - 64X, 8X - 80X (respectively)
Field of View 28.8mm-4.6mm, 28.8mm-3.6mm, 28.8mm-2.9mm (respectively)
Working Distance 78mm
Eyepieces Inclination: 20 and 0 - 45
Dioptric Adjustment: 5 Dual Independent
Interpupillary Adjustment: 51mm - 75mm
Microscope Ring Mount Diameter: 76mm
Available Eyepieces: 10X, 20X and 30X
Available Objective Lens: 0.5X Achromatic, 0.5X Plan Apo, 1X Plan, and 2X Plan
Available Video Coupler: 0.35X and 0.5X
Available Video Slitter: Single bean port
Optional Iris: Yes
E-SERIES OPTICAL SPECIFICATIONS
Objective Lens Working Distance (mm) Zoom Body Eyepieces
10X 20X 30X
Mag FOV (mm) Mag FOV (mm) Mag FOV (mm)
0.5X 187mm
1:6 4X - 25X 57.5 - 9.2 8X - 50X 35 - 5.6 12X - 75X 25 - 4
1:8 4X - 32X 57.5 - 7.2 8X - 64X 35 - 4.4 12X - 96X 25 - 3.1
1:10 4X - 40X 57.5 - 5.8 8X - 80X 35 - 3.5 12X - 120X 25 - 2.5
1X 78mm
1:6 8X - 50X 28.8 - 4.6 16X - 100X 17.5 - 2.8 24X - 150X 12.5 - 2
1:8 8X - 64X 28.8 - 3.6 16X - 128X 17.5 - 2.2 24X - 192X 12.5 - 1.6
1:10 8X - 80X 28.8 - 2.9 16X - 160X 17.5 - 1.8 24X - 240X 12.5 - 1.3
2X 35mm
1:6 16X - 100X 14.4 - 2.9 32X - 200X 8.8 - 1.4 48X - 300X 6.3 - 1
1:8 16X - 128X 14.4 - 2.3 32X - 256X 8.8 - 1.1 48X - 384X 6.3 - 0.8
1:10 16X - 160X 14.4 - 1.8 32X - 230X 8.8 - 0.9 48X - 480X 6.3 - 0.6
* Packaged Specifications; Mag. = Magnification, FOV = Field of View, WD = Working Distance
CMO-PK5 Series [E-Series 20 Fixed Head Binocular on Boom Stand Systems]

This package is designed to support large research grade microscopes, has a smooth gliding motion, and offered resistance to tip-over and vibration.

Systems Include:


Select your system choice of lighting:




CMO-PK5E Series [E-Series Tilting Head Binocular on Boom Stand Systems]

This package is designed to support large research grade microscopes, has a smooth gliding motion, and offered resistance to tip-over and vibration.

Systems Include:


Select your system choice of lighting:




CMO-PK2 Series [E-Series 20 Fixed Head Binocular on Dual LED Track Stand]

This stable and compact package is ideal for smaller applications like medical device application or crowded working environments. The track stand provides a continuous smooth vertical travel of 4" with dual LED transmitted and reflected light.

CMO-PK2 System Includes:




CMO-PK2E Series [E-Series 20 Fixed Head Binocular on Dual LED Track Stand]

This stable and compact package is ideal for smaller applications like medical device application or crowded working environments. The track stand provides a continuous smooth vertical travel of 4" with dual LED transmitted and reflected light.

CMO-PK2E System Includes:
